Is Pure Aluminum Foil Tape With Liner Really the Hidden Key to Better Insulation?

Update:25 Aug 2025

What Is Aluminum Foil Tape and Why Does the Liner Matter?

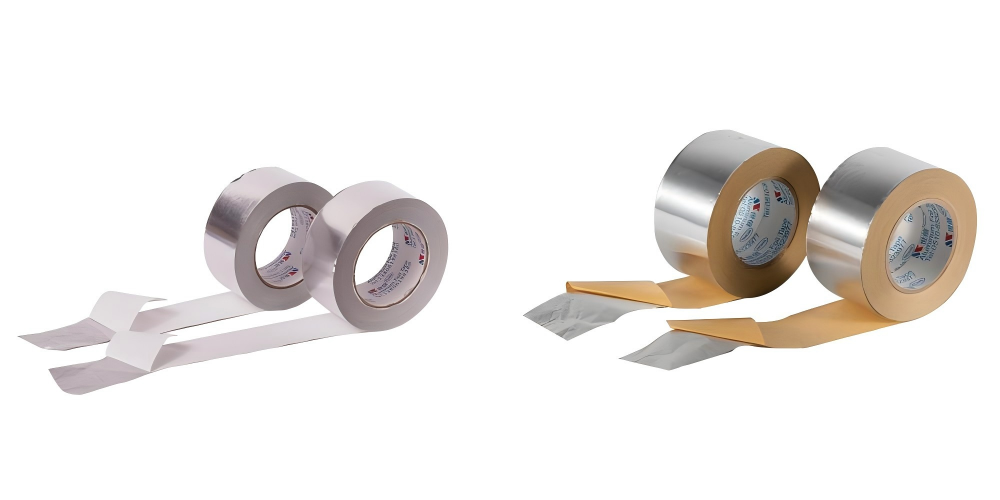

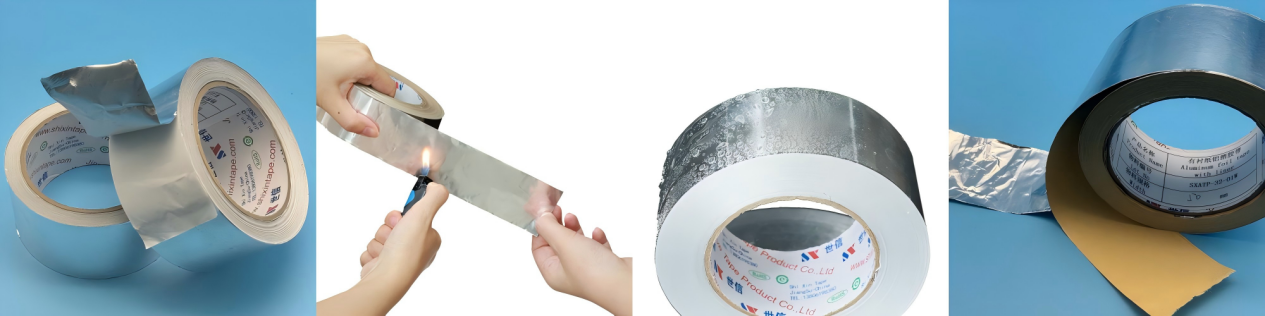

Pure Aluminum Foil Tape With Liner is a specialized self-adhesive material designed for technical sealing, insulation enhancement, and surface protection. Unlike common   adhesive tapes, this product is engineered with three crucial layers that determine its performance.



The first and most visible layer is the pure aluminum foil substrate. This metallic layer is ultra-thin yet strong, providing reflective properties, mechanical stability, and a non-permeable barrier. The second layer is the acrylic pressure-sensitive adhesive that ensures strong bonding to surfaces ranging from steel and copper to plastics and fiberglass. Finally, the liner acts as a protective release layer, typically made of treated paper or film. This prevents premature adhesion, contamination, and handling issues, making the tape more practical for industrial applications.

The presence of a liner is a critical difference between general foil tapes and Pure Aluminum Foil Tape With Liner. Without a liner, installation may be messy and inefficient, while the liner allows precision cutting, die-stamping, and smooth handling, especially in HVAC or large-scale insulation projects.

Properties of Pure Aluminum Foil Tape With Liner in Insulation

When evaluating Pure Aluminum Foil Tape With Liner, its scientific properties reveal why it is chosen in professional insulation and sealing work.

Thermal Conductivity

Aluminum exhibits very high thermal conductivity, meaning it allows heat to travel through its structure rapidly. While this might sound counterintuitive for insulation, it plays a supporting role in controlling surface heat distribution. For ductwork, aluminum’s conductivity helps prevent localized overheating and ensures heat is evenly managed.

Heat Resistance

The metallic foil combined with a specialized acrylic adhesive ensures the tape can withstand prolonged exposure to high temperatures. In HVAC systems or industrial plants where heat fluctuations are constant, Pure Aluminum Foil Tape With Liner maintains adhesion and structural integrity without warping, burning, or degrading.

Moisture and Vapor Barrier

The foil layer acts as a dense shield against water vapor penetration. This property is critical because moisture is a primary cause of corrosion and insulation degradation. By preventing condensation, the tape prolongs the life of insulation systems and maintains energy efficiency.

Adhesive Performance

The acrylic adhesive used in Pure Aluminum Foil Tape With Liner is designed for long-term reliability. It bonds well with metals, plastics, insulation boards, and composites. Unlike some adhesives that dry out or lose stickiness over time, this adhesive retains tackiness and strength, ensuring the seal remains intact for years.



Advantages of Using Pure Aluminum Foil Tape With Liner

When applied as a supplementary material in insulation systems, the tape delivers unique advantages:

Ease of Application

The liner prevents premature sticking, allowing technicians to handle, measure, and cut the tape precisely. This is particularly valuable for complex shapes such as HVAC elbows, pipe bends, and irregular joints.

Reflective Properties

Aluminum’s ability to reflect up to 97 percent of radiant heat makes it an effective radiant barrier. In attics or exposed ductwork, this reflective quality significantly improves energy efficiency.

Cost-Effectiveness

Compared to other sealing or barrier methods, Pure Aluminum Foil Tape With Liner is affordable while delivering professional-grade performance. It offers a high return on investment because it minimizes energy loss and extends the lifespan of insulation materials.

Versatility

The tape’s flexibility means it is used across construction, mechanical engineering, refrigeration, and even aerospace industries. It seals seams, repairs barriers, secures insulation wraps, and adds a reflective layer to radiant insulation systems.



Limitations and Considerations

While valuable, the tape has limits that must be acknowledged.

· It is not a primary insulation material because its R-value is negligible. Its function is sealing and reflecting, not bulk insulation.

· Surface preparation is essential. Dust, grease, or moisture can reduce adhesive performance.

· Extreme environments such as continuous UV exposure or sub-zero freezing may shorten its lifespan.

· It should be paired with fiberglass, foam, or mineral wool for optimal results.



Common Applications of Pure Aluminum Foil Tape With Liner in Insulation

The real power of this tape emerges when used in targeted applications.

HVAC Systems

The tape seals duct seams and joints, preventing conditioned air from escaping. Studies have shown that poorly sealed duct systems can lose up to 30 percent of energy, so proper sealing with foil tape directly improves efficiency.

Pipe Insulation

Cold pipes often suffer from condensation, while hot pipes lose heat. By wrapping insulation sleeves and sealing them with Pure Aluminum Foil Tape With Liner, both moisture and heat transfer are controlled effectively.

Radiant Barriers

When large reflective panels are installed in attics, the tape seals their seams, ensuring a continuous reflective layer. This prevents weak spots where radiant heat might penetrate.

Sealing Seams and Joints

For insulation boards or vapor barrier films, the tape provides an airtight, waterproof seal that protects performance.



How to Properly Apply Pure Aluminum Foil Tape With Liner

Correct application determines performance.

· Surface Preparation: Clean with a degreaser and ensure the surface is dry.

· Application Technique: Overlap seams by at least one inch for strong seals.

· Pressure Tools: Use rollers to eliminate air pockets and improve adhesion.



Comparing Pure Aluminum Foil Tape With Liner to Other Insulation Materials

To appreciate its role, compare its functions to common insulation materials.

Feature

Pure Aluminum Foil Tape With Liner

Fiberglass Batts

Foam Board Insulation

Primary Function

Sealant and radiant barrier

Bulk thermal insulation

Rigid thermal insulation

Insulation Value (R-value)

Negligible

High

High

Moisture Barrier

Excellent

Weak without added vapor barrier

Good

Application

Sealing seams, joints, wraps

Filling cavities

Wall and sheathing

Cost

Low

Medium

High

Durability

High when applied well

Can degrade with moisture

Very durable

Key Benefit

Heat reflection and sealing

Thermal resistance

High R-value with rigidity



Addressing Common Misconceptions

Many believe Pure Aluminum Foil Tape With Liner alone can insulate a space. This is incorrect. It must be used with insulation materials, not instead of them. The reflective and sealing benefits enhance insulation performance but cannot replace high R-value products.

Case Studies and Real-World Examples

Successful HVAC Application

A technician seals every duct seam in a new ventilation system using foil tape. As a result, the system loses almost no conditioned air, improving efficiency and lowering energy bills by up to 20 percent.

Enhancing Pipe Insulation

A plumber wraps hot water pipes in foam insulation and seals them with the tape. The outcome: reduced heat loss, lower energy consumption, and extended insulation lifespan.

Poor Choice for Wall Insulation

A DIY homeowner tries to insulate a garage wall with foil tape alone. The result is disappointing because the tape has no bulk insulation. This illustrates why the tape is supplemental, not standalone.



Additional Comparison: Pure Aluminum Foil Tape With Liner vs. General Foil Tape

Property

Pure Aluminum Foil Tape With Liner

Standard Foil Tape Without Liner

Handling

Easy to cut, stamp, and apply

Can stick to itself, harder to handle

Application Speed

Faster with precision

Slower due to lack of liner

Adhesive Protection

Protected until use

Exposed, may lose tack

Versatility

High, especially in industrial use

Moderate, limited handling efficiency

Durability

Enhanced due to clean application

May weaken if improperly applied


Conclusion: Where Does Pure Aluminum Foil Tape With Liner Truly Shine?

So, is Pure Aluminum Foil Tape With Liner the secret to better insulation? The answer is both yes and no.

It is not a replacement for bulk insulation, but as a supplementary sealing and reflective tool, it is indispensable. Its ability to act as a moisture barrier, radiant barrier, and airtight seal makes it essential for HVAC, pipe insulation, and radiant systems. It enhances efficiency, durability, and protection when paired with traditional insulation materials.

In practical terms, its greatest strength is partnership. When used alongside fiberglass, foam, or mineral wool, Pure Aluminum Foil Tape With Liner elevates the entire system’s performance. When used alone, it falls short.

In summary, this tape is not just another adhesive—it is a scientific solution engineered for precision insulation support. Its role is clear: seal, protect, and reflect. For professionals and homeowners seeking to optimize energy efficiency and longevity of insulation systems, few materials offer as much value as Pure Aluminum Foil Tape With Liner.
