- Characteristics :
Key Advantages
Precise Non-Slip Positioning: Special adhesive offers moderate initial tack for adjustment while maintaining strong vibration resistance
Damage-Free Removal: Silicon-coated backing prevents residue on ABS/PS plastics after peeling
High Tear Resistance: ≥35N/cm tensile strength reliably supports heavy glass shelves
Visual Efficiency Boost: Blue substrate enables quick identification of application areas
Typical Applications
Pre-assembly positioning of refrigerator doors and liners
Temporary bundling of evaporator tubes
Shock protection for glass shelves during transit
Wire harness organization and fixation
- Application:
Refrigerator & Freezer Assembly
Used for temporary positioning of internal components such as drawers, shelves, trays, and wire harnesses during the assembly of refrigerators and freezers. Ensures stability before final installation and packaging.Appliance Transport Protection
Secures doors, glass shelves, plastic trays, and interior parts during domestic and international transportation, preventing vibration, shifting, and potential damage.Temporary Component Positioning
Ideal for holding parts in place during assembly processes. Helps technicians complete installation more efficiently without using additional clamps or fixtures.Home Appliance Manufacturing Lines
Widely used in production lines for refrigerators, freezers, air conditioners, and other household appliances to improve workflow efficiency and maintain assembly accuracy.Electronics & Device Protection
Suitable for cable fixing, panel positioning, and temporary bonding in electronic device manufacturing. Removes cleanly without damaging sensitive surfaces.Warehousing & Packaging Stabilization
Provides additional stabilization for components packed inside cartons or crates. Ensures the product remains intact during storage, handling, and shipment. - Product Features:
1. Clean Removal, No Residue
2. High Tensile Strength PET Film
3. Easy Peel and Quick Application
4. Temperature & Humidity Resistant
5. Ideal for Temporary Fixing
6. Available in Multiple Colors & Adhesion Levels - Parameters :

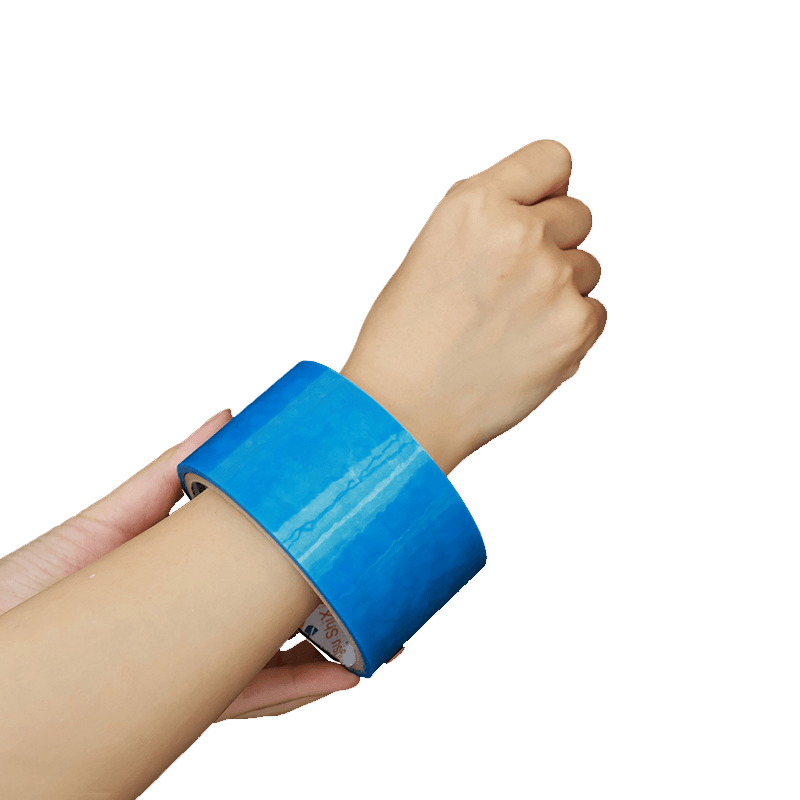

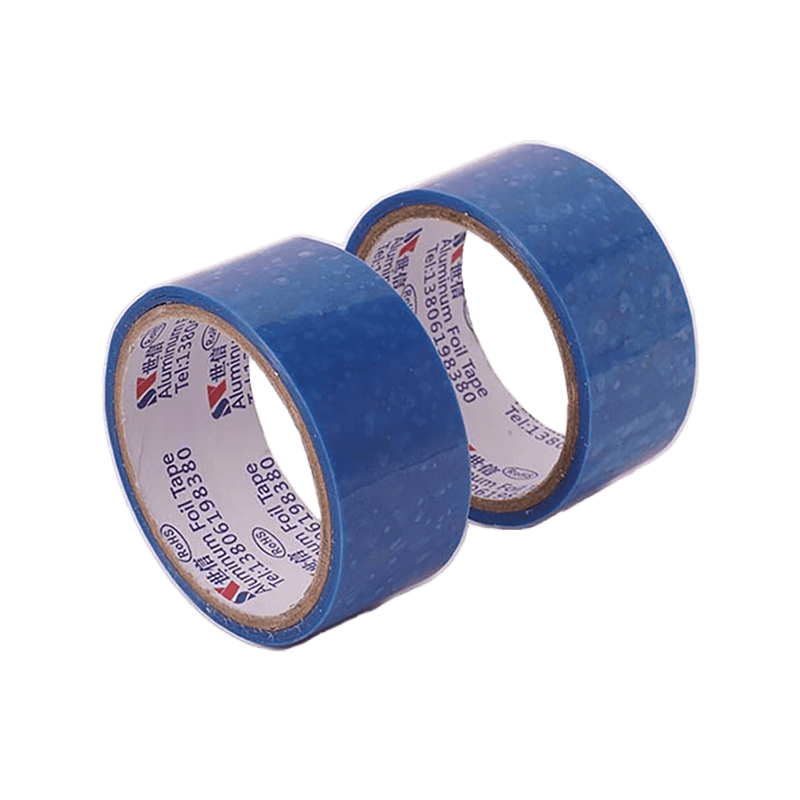

PET Fixed Tape
PET Fixed Tape, used in fridges/coolers (blue/transparent), uses natural rubber or solvent -based acrylic adhesive,
linerless. Blue PET (polyester base) has high tensile strength, low elongation—non-stretch, tear-resistant, secures
parts without residueBack silicon coating enables easy release;blue colorallows quick identification.-Apps &Colors: Fridges/coolersblue/transparent
-Adhesive &Design: Rubber/acrylic adhesive; linerless
-Material:Polyester base; high tensile, tear-resistant, non-stretch
-User Experience: No residue; easy-release coating; blue for ID
Model Number
SXPET-30R
SXPET-30S
Jumbo Roll Width
1000/1200mm
Length
5m/50m/100m/600m(custom lengths upon request)
Width Options
25mm/48mm/50mm(2 inches)/63mm(2.5 inches)/75mm(3 inches)/100mm(4 inches)with additional sizes available.
Initial Tack
4#
6#
Color
Translucent/Blue/Green/Red ect
Peel Adhesion
≥2.5N/cm
≥2N/cm
Tensile Strength
≥35n/cm
Adhesive type
Rubber
Solvent-based
Roll size
40mm*50m(Small roll)
Carton Package Size
375mm*265mm*280mm
